Tweco® Style Consumables

Tweco® Style Contact Tips

	Contact Tips
	Stock Code	Description	Wire Size	Material	Model

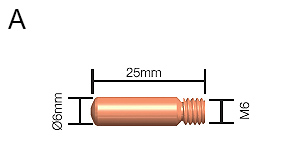

A	11-23	Contact Tip	0.6mm	ECu	PA No.1
	11-30	Contact Tip	0.8mm	ECu	PA No.1
	11-35	Contact Tip	0.9mm	ECu	PA No.1
	11-40	Contact Tip	1.0mm	ECu	PA No.1
	11-45	Contact Tip	1.2mm	ECu	PA No.1

	Stock Code	Description	Wire Size	Material	Model

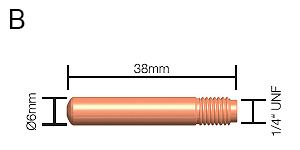

B	14-23	Contact Tip	0.6mm	ECu	PA No.2/4
	14-30	Contact Tip	0.8mm	ECu	PA No.2/4
	14-35	Contact Tip	0.9mm	ECu	PA No.2/4
	14-40	Contact Tip	1.0mm	ECu	PA No.2/4
	14-45	Contact Tip	1.2mm	ECu	PA No.2/4
	14-52	Contact Tip	1.3mm	ECu	PA No.2/4
	14-116	Contact Tip	1.6mm	ECu	PA No.2/4

	Stock Code	Description	Wire Size	Material	Model

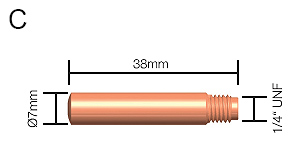

C	14H-30	Contact Tip Heavy Duty	0.8mm	ECu	PA No.2/4
	14H-35	Contact Tip Heavy Duty	0.9mm	ECu	PA No.2/4
	14H-40	Contact Tip Heavy Duty	1.0mm	ECu	PA No.2/4
	14H-45	Contact Tip Heavy Duty	1.2mm	ECu	PA No.2/4
	14H-52	Contact Tip Heavy Duty	1.3mm	ECu	PA No.2/4
	14H-116	Contact Tip Heavy Duty	1.2mm	ECu	PA No.2/4
	14AH-364	Contact Tip Heavy Duty Ali Wire	1.2mm	ECu	PA No.2/4
	14AH-116	Contact Tip Heavy Duty Ali Wire	1.6mm	ECu	PA No.2/4
	14H-564	Contact Tip Heavy Duty	2.0mm	ECu	PA No.2/4

	Stock Code	Description	Wire Size	Material	Model

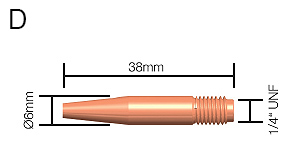

D	14T-30	Contact Tip Tapered	0.8mm	ECu	PA No.2/4
	14T-35	Contact Tip Tapered	0.9mm	ECu	PA No.2/4
	14T-40	Contact Tip Tapered	1.0mm	ECu	PA No.2/4
	14T-45	Contact Tip Tapered	1.2mm	ECu	PA No.2/4
	14T-52	Contact Tip Tapered	1.3mm	ECu	PA No.2/4
	14T-116	Contact Tip Tapered	1.6mm	ECu	PA No.2/4

	Stock Code	Description	Wire Size	Material	Model

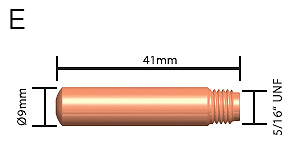

E	15HFC-35	Contact Tip Flux Cored	0.9mm	ECu	PA No.5
	15HFC-40	Contact Tip Flux Cored	1.0mm	ECu	PA No.5
	15HFC-45	Contact Tip Flux Cored	1.2mm	ECu	PA No.5
	15HFC-52	Contact Tip Flux Cored	1.4mm	ECu	PA No.5
	15HFC-116	Contact Tip Flux Cored	1.6mm	ECu	PA No.5
	15HFC-564	Contact Tip Flux Cored	2.0mm	ECu	PA No.5
	15HFC-332	Contact Tip Flux Cored	2.4mm	ECu	PA No.5
	15HFC-764	Contact Tip Flux Cored	2.8mm	ECu	PA No.5

	Stock Code	Description	Wire Size	Material	Model

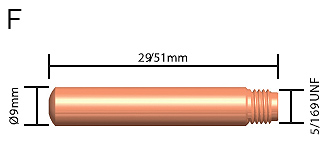

F	15H-35	Contact Tip	0.9mm	ECu	PA No.5
	15H-40	Contact Tip	1.0mm	ECu	PA No.5
	15H-45	Contact Tip	1.2mm	ECu	PA No.5
	15H-52	Contact Tip	1.3mm	ECu	PA No.5
	15H-364	Contact Tip Aluminium	1.2mm	ECu	PA No.5
	15H-116	Contact Tip	1.6mm	ECu	PA No.5
	15H-564	Contact Tip	2.0mm	ECu	PA No.5
	15H-332	Contact Tip	2.4mm	ECu	PA No.5
	15AH-116	Contact Tip Aluminium	1.6mm	ECu	PA No.5

Top

Tweco® Style Nozzles

	Nozzles
	Stock Code	Description		Bore	Model

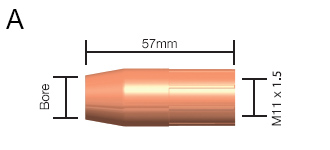

A	21-37	Nozzle Self Insulated		10mm	PA No.1
	21-50	Nozzle Self Insulated		13mm	PA No.1
	21-62	Nozzle Self Insulated		16mm	PA No.1

	Stock Code	Description		Bore	Model

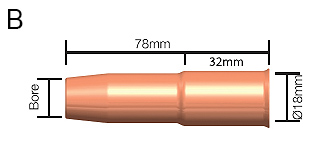

B	22-50	Nozzle Adjustable		13mm	PA No.2
	22-62	Nozzle Adjustable		16mm	PA No.2

	Stock Code	Description		Bore	Model

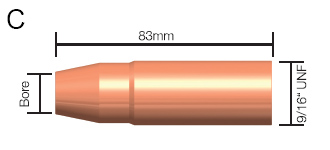

C	23-50	Nozzle Self Insulated		13mm	PA No.2
	23-62	Nozzle Self Insulated		16mm	PA No.2
	23-75	Nozzle Self Insulated		19mm	PA No.2

	Stock Code	Description		Bore	Model

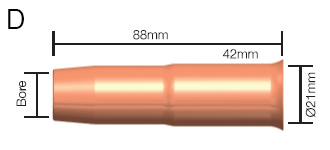

D	24A-50	Nozzle Adjustable		13mm	PA No.4
	24A-62	Nozzle Adjustable		16mm	PA No.4
	24A-75	Nozzle Adjustable		19mm	PA No.4

	Stock Code	Description		Bore	Model

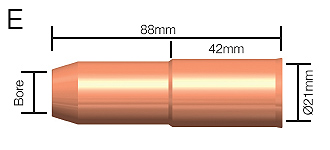

E	24AH-62	Nozzle Adjustable Heavy Duty		16mm	PA No.4
	24AH-75	Nozzle Adjustable Heavy Duty		19mm	PA No.4

	Stock Code	Description		Bore	Model

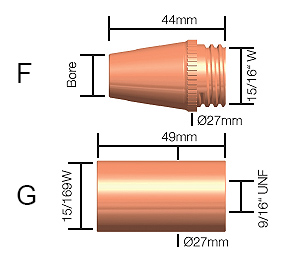

F	24CT-50S	Fixed Nozzle Coarse Thread		13mm	PA No.2/4
	24CT-62S	Fixed Nozzle Coarse Thread		16mm	PA No.2/4
	24CT-75S	Fixed Nozzle Coarse Thread		19mm	PA No.2/4
G	34CT	Nozzle Insulator Coarse Thread			PA No.2/4

	Stock Code	Description		Bore	Model

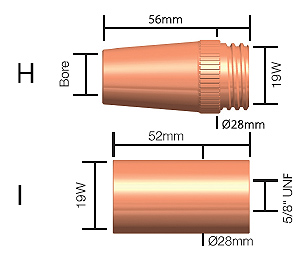

H	25CT-50	Fixed Nozzle Coarse Thread		13mm	PA No.5
	25CT-62	Fixed Nozzle Coarse Thread		16mm	PA No.5
	25CT-75	Fixed Nozzle Coarse Thread		19mm	PA No.5
I	35CT	Nozzle Insulator Coarse Thread			PA No.5

Top

Tweco® Style Gas Diffusers

	Gas Diffusers
	Stock Code	Description	Tip Thread	Wire	Model

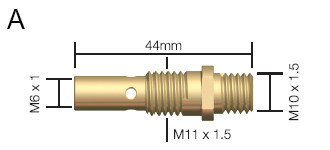

A	51	Gas Diffuser	M6		PA No.1

	Stock Code	Description	Tip Thread	Wire	Model

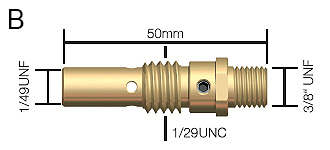

B	52	Gas Diffuser	1/4″ UNF		PA No.2

	Stock Code	Description	Tip Thread	Wire	Model

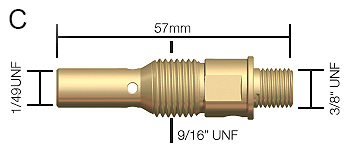

C	52FN	Gas Diffuser	1/4″ UNF		PA No.2

	Stock Code	Description	Tip Thread	Wire	Model

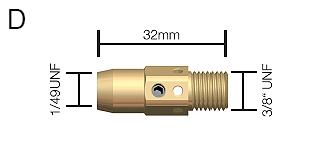

D	54A	Gas Diffuser	1/4″ UNF		PA No.4

	Stock Code	Description	Tip Thread	Wire	Model

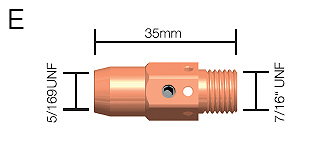

E	55SW	Gas Diffuser	5/16″ UNF	0.9 – 1.2mm	PA No.5
	55	Gas Diffuser	5/16″ UNF	1.6 – 2.0mm	PA No.5
	55H	Gas Diffuser	5/16″ UNF	2.4 – 2.8mm	PA No.5
