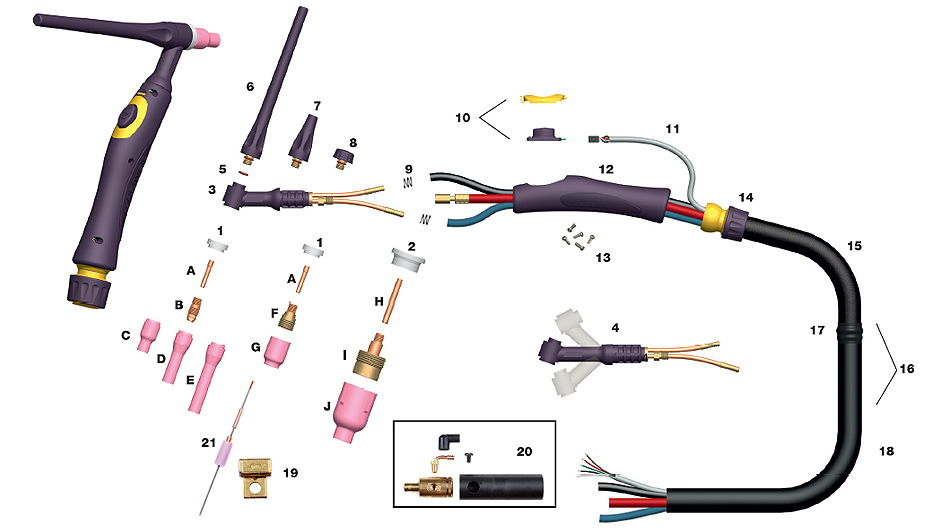

Ergo Tig Torch Packages ER20 & ER20F
ER20 and ER20F - Water Cooled Ergo Tig Welding Torch
Rating: 250A DC, 190A AC @100% Duty Cycle, EN60974-7 0.5mm - 3.2mm Electrodes
| Torch Head | |||||||
|---|---|---|---|---|---|---|---|
| Stock Code | Description | ||||||
| P20 | Torch Head Water Cooled 250A DC | ||||||
| P20F | Torch Head Flexible Water Cooled 250A DC | ||||||
|
|
|||||||
| Cable Length | |||||||
|---|---|---|---|---|---|---|---|
| Stock Code | Description | ||||||
| 12 | 3.8m Cables c/w Leather Cover and Neoprene Sheath | ||||||
| 25 | 7.6m Cables c/w Leather Cover and Neoprene Sheath | ||||||
|
|
|||||||
| Switch Option | |||||||
|---|---|---|---|---|---|---|---|
| Stock Code | Description | ||||||
| S1 | Momentary Switch | ||||||
| S1L | Momentary Switch and Lever | ||||||
| S2 | 2 Button Momentary | ||||||
| S4 | 4 Button Momentary | ||||||
| 2K | 1 Button Momentary + 5K Potentiometer | ||||||
| 3K | 1 Button Momentary + 10K Potentiometer | ||||||
| N | Blank | ||||||
|
|
|||||||
| Australian Cable Termination | |||||||
|---|---|---|---|---|---|---|---|
| Stock Code | Description | ||||||
| UW | 7/8″ UNF LH Male on Power, 5/8″ UNF RH Male on Gas, 5/8″ UNF LH Male on Water | ||||||
| UE | D3595 Dinse on Power, 5/8″ UNF LH on Water in/out, 5/8″ UNF RH Male on Gas | ||||||
|
|
|||||||
| Cable Plug | |||||||
|---|---|---|---|---|---|---|---|
| Stock Code | Description | ||||||
| 0 | 2 Pin Amphenol Plug | ||||||
| 0M | 2 Pin Amphenol Plug (Miller) | ||||||
| 1 | 4 Pin Amphenol Plug | ||||||
| 2 | 5 Pin Amphenol Plug | ||||||
| 3 | 6 Pin Amphenol Plug | ||||||
| 4 | 7 Pin Amphenol Plug | ||||||
| 5 | 10 Pin Amphenol Plug | ||||||
| 6 | 14 Pin Amphenol Plug | ||||||
|
|
|||||||
